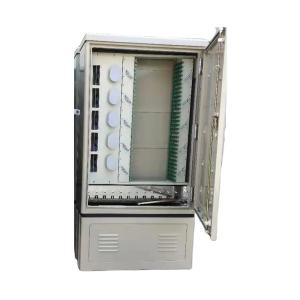

FTTX Outdoor Fiber Optic Cabinet FDT SC Port 288 Fibers Waterproof

Name: FTTX Outdoor Fiber Optic Cabinet FDT SC Port 288 Fibers Waterproof
Brand: Twilight Optic or OEM
Price: 1 USD

Wholesale FTTX Outdoor Fiber Optic Cabinet FDT SC Port 288 Fibers Waterproof from china suppliers

Brand Name : Twilight Optic or OEM

Model Number : TW-CBSMC-288B

Place of Origin : China

MOQ : 1

Price : Can be disscussed

Payment Terms : Western Union, T/T, L/C

Supply Ability : 1000/Months

Delivery Time : 5-8 working days

Packaging Details : Carton+Pallet

Material : SMC

Color : Grey White

Size : 1450*750*320MM

Splice tray : 12F or 24 F

Splice tray capacity : 24pcs or 12pcs

Package : Carton box + Pallet

Warranty : Many Years

Application : Fiber Optic Cable Distribution

Contact Now

External waterproof FDT FTTX SMC fiber optic cabinet 288 fibers outdoor SC port

1. Specification

Parameters
Model	TW-CBSMC-288B
Max. No. of Cores	288 Core SC,FC,ST Simplex Fiber or 576 LC Fibers
Splitter Type	ABS Box Type
Max. No. of Splitters	10
Splice Tray Type	12 cores/tray or 24 cores
Max. No. of Splice Tray	24 or 24
Cabinet Material	SMC
Adapter Panel	FC Square, SC, DLC (SC type)
Insulation Resistance (MΩ)	1000 @500V (DC)
Withstanding Voltage (V/min)	3000 (DC), no breakdown, no flashover
Installation Type	Ground
Protection Rating	IP65
Operating Temperature (°C)	-40~ +60
Dimensions (mm)	1450750320MM
Weight (kg)	80

Applications:

● Communications

● Networks

● Industrial control

● Building automation

● Connector insertion and durability> 1000 times

Features:

● The protection grade reaches IP65

● Made of powder coated iron or SMC Material (optional)

● Excellent anti-erosion, waterproof and dustproof performance

● Multiple installation options, including floor and wall installations

● Each incoming cable will be fixed properly with earth provided

● Available for normal fiber cable and fan-out fiber cable

● Solid and fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance

● Integrated splice and distribution unit is adopted. The drawer type distribution module can be easy changed according to the requirements,

which is very easy for future maintenance.
