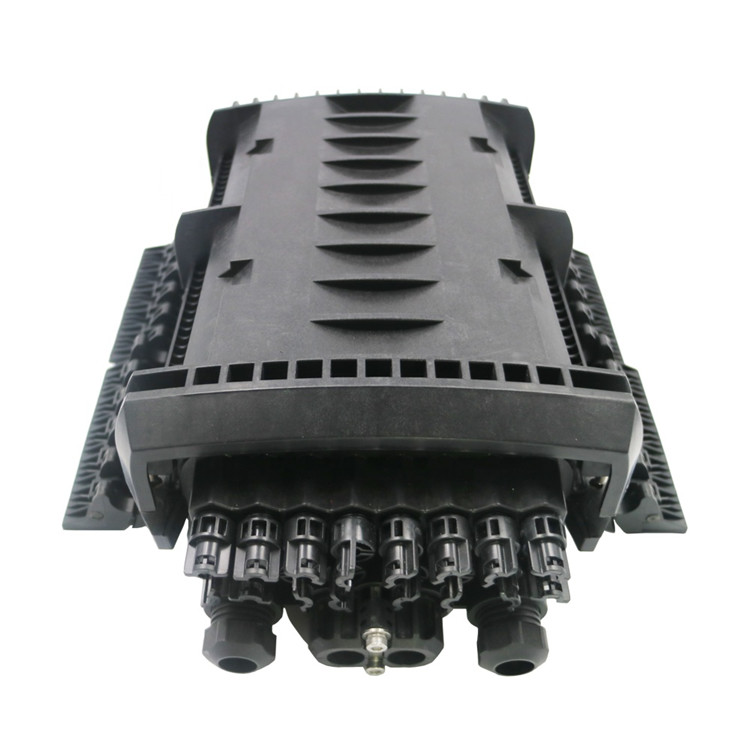

Ftth IP68 Outdoor Fiber Optic Terminal Box FTTH Box 16 Ports Caja NAP

Name: Ftth IP68 Outdoor Fiber Optic Terminal Box FTTH Box 16 Ports Caja NAP
Brand: Twilight Optic
Price: 33 USD

Wholesale Ftth IP68 Outdoor Fiber Optic Terminal Box FTTH Box 16 Ports Caja NAP from china suppliers

Brand Name : Twilight Optic

Model Number : TW-FATC-001-16

Place of Origin : Guangdong

MOQ : 1pcs

Price : 33usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs per week

Delivery Time : 7-10 working days

Packaging Details : 4 pcs/ Carton, Size:53x43x34cm G/W:20KG

Name : Fiber Access Terminal Closure

Material : Strengthen Polymer Pl astic

Size : A*B*C(mm) 385*245*130

Max. capacity : Splice 96 Fibers

Sealing type : Mechanical

Weight : 5kg

Splice tray quantity : 1～4

Single splice tray capacity : 24 fibers

Cable ports : 1 input 10~17.5mm,2 output 8~17.5mm,16 output less than 4mm

Application : Wall mounting or Pole mounting

Contact Now

Ftth IP68 Outdoor Fiber Optic Terminal Box FTTH Box 16 Ports Caja NAP

FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience.

Features

• Water-proof design with IP-68 Protection level.

• Integrated with flap-up splice cassette and adaptor holder.

• Impact test:IKlO. Pull Force: lOON. Full rugged design

• All stainless metal plate and anti-rusting bolts,nut s.

• Fiber bend radius control more than 40mm.

• Suitable for the fusion splice or mechanical splice.

• 2 pcs of 1*8 Splitter can be installed as an option.

• Mechanical sealing structure and mid-span cable entry.

• 24 ports cable entrance for drop cable.

• 24 adaptors for drop cablepatching

Configuration

Material	Size	Max Capacity		Nos of Adaptor	Weight	Color
Strengthen Polymer Plastic	ABC(mm) 385245130	Splice 96 Fibers (4t rays. 24 fiber/tray)	PLC Splitter 2pcs of lx8	16 pcs SC	5kg	Black

Applications:

• Wall mounting and pole mounting installtion

• FTTH pre-installation and filed installation

• 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clam p, cable tube, wreach, cover holder, rubber seal for cable entrance.

Optional Accessories

Pole ring
